Style 6 Thermowell

Forged, Solid Turned Flanged Thermowell

• Forged material option
• Solid Turned Construction (no welds)
• Material 316 Stainless, others available on request.
• Material certs, hardness, PMI, Ultrasonic and Wake frequency tests available

The Style 6 solid drilled flanged thermowell is manufactured from solid bar-stock to ensure strength and integrity. This heavy duty construction is designed for use within applications involving high pressures and flow rates.

It is available with either a parallel or tapered stem profile and has wide variety of flange sizes and ratings available including RF, FF and RTJ configurations.

This style of thermowell is available with a seal or full penetration welded flange, or for ultimate strength machined as a one-piece forging. The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.

The solid drilled Style 6 flanged thermowell is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

In order to determine or prove the suitability and required dimensions of a thermowell based on the process conditions, we offer wake frequency calculations as per ASME PTC 19.3 TW-2016. In addition there are a number of other certification and testing services available including 3.1 material certificates, dye penetrant testing, positive material identification (PMI) and radiographic inspection (X-Ray).

For use with our temperature probe range which can be seen here and here.

You can learn more about thermowells here

Style 5 Thermowell

Fabricated Flanged Thermowell

• Suitable For Flanged Process Connections
• Fabricated construction, Manufactured To Order
• Material 316 Stainless, others available on request.
• Material certs, hardness, PMI, Ultrasonic and Wake frequency tests available

The Style 5 fabricated flanged thermowell is designed for light to medium process conditions and is manufactured from tube or pipe and closed at the tip by a welded cap.

The Style 5 fabricated flanged thermowell features a parallel stem profile and has wide variety of flange sizes and ratings available including RF, FF and RTJ configurations.

This style of thermowell is available with a seal welded flange. The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.  Our range of temperature sensors can be seen here and here.

You can learn more about thermowells here

It is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

There are a number of optional certification and testing services available including 3.1 material certificates to ensure full traceability, pressure testing and positive material identification (PMI).

Style 4 Thermowell

Solid Turned (For Strength) Thermowell

• Solid Turned Construction (no welds)
• Manufactured To Order
• Material 316 Stainless, others available on request.
• Material certs, hardness, PMI, Ultrasonic and Wake frequency tests available

The Style 4 solid drilled threaded thermowell is available with either a parallel or tapered stem profile and has wide variety of process thread connections available.

The solid drilled threaded thermowell is also available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.  Our range of temperature sensors can be seen here and here.

In order to determine or prove the suitability and required dimensions of a thermowell based on the process conditions, we offer wake frequency calculations as per ASME PTC 19.3 TW-2016. In addition there are a number of other certification and testing services available including 3.1 material certificates, pressure testing and positive material identification (PMI). You can learn more about thermowells here

Style 3 Thermowell

Weld In Thermowell

• 316 Stainless Steel Construction
• Suitable for Style 1,9 and 2,4 when used with a compression gland
• Manufactured to suit your application

The fabricated weld in thermowell is suitable for style 1 & 9 and styles 2 & 4 temperature probes with a compression gland. The fabricated weld in thermowell is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

There are a number of optional certification and testing services available including 3.1 material certificates to ensure full traceability, pressure testing and positive material identification (PMI).

The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.  Our range of temperature sensors can be seen here and here.

You can learn more about thermowells here

Style 2 Thermowell

Thermowell with compression fitting for sensor fixing

• Standard Material 316 Stainless Steel
• Integral Compression Gland
• For use with styles 2,4, 6 and 8 temperature probes

The Style 2 fabricated threaded thermowell features an integral compression fitting which allows for easy installation of an RTD or Thermocouple temperature sensor. It is an all welded construction with compression gland, suitable for style 2 and 4 temperature sensors.

The Style 2 fabricated threaded thermowell features a parallel stem profile and has wide variety of process thread connections available. The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.  Our range of temperature sensors can be seen here and here.

It is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

There are a number of optional certification and testing services available including 3.1 material certificates to ensure full traceability, pressure testing and positive material identification (PMI).

You can learn more about thermowells here

Style 1 Thermowell

Standard Thermowell

• Designed for light process conditions
• Standard Material 316 Stainless Steel
• Manufactured to your specification
• Different materials available
• For use with threaded temperature probes
• Can be used with compression fitting

The Style1 fabricated threaded thermowell is designed for light process conditions and is manufactured from tube or pipe and closed at the tip by a welded cap.

It features a parallel stem profile and has wide variety of process thread connections available. The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.

The Style 1 fabricated threaded thermowell is available in a wide selection of materials including 316 stainless steel, Alloy C276 (Hastelloy®), Alloy 400 (Monel®) and Alloy 600 (Inconel®).

There are a number of optional certification and testing services available including 3.1 material certificates to ensure full traceability, pressure testing and positive material identification (PMI).

The instrument connection can be specified with a BSPP, BSPT or NPT thread which allows for easy installation of an RTD or Thermocouple temperature sensor.  Our range of temperature sensors can be seen here and here.

You can learn more about thermowells here

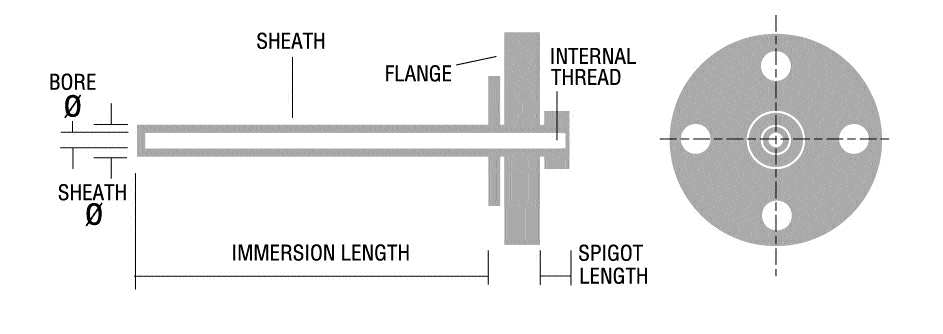

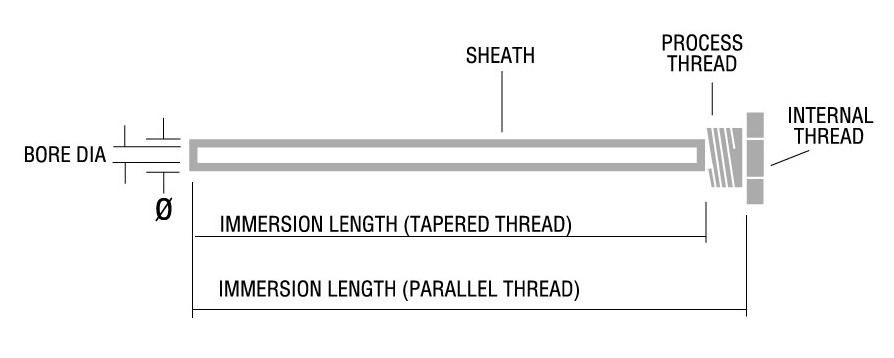

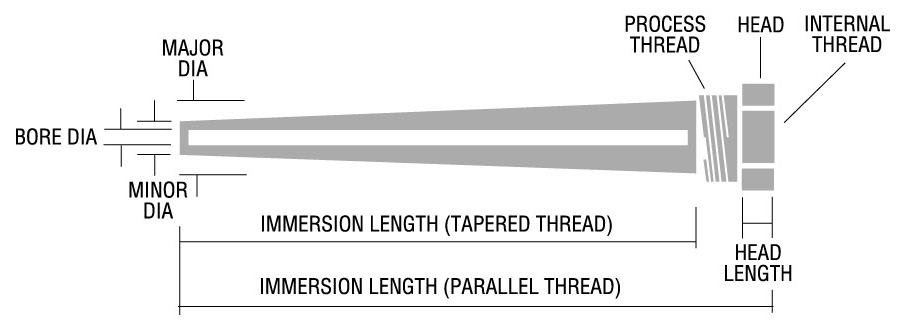

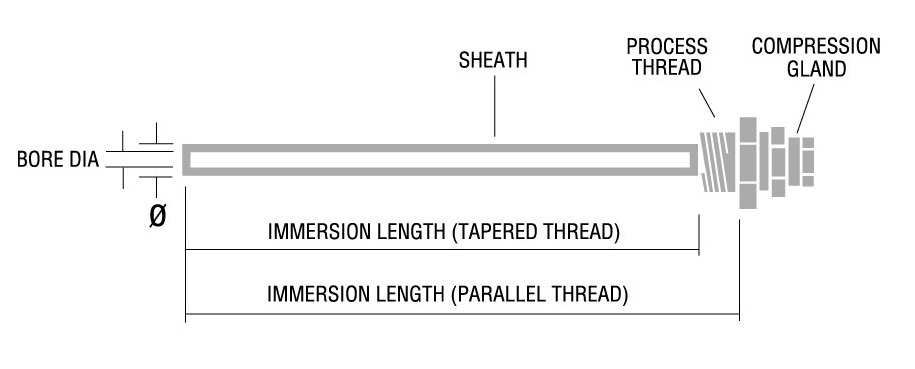

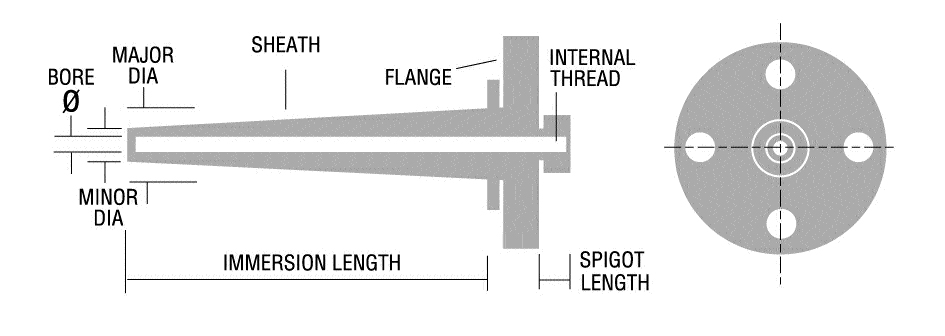

Specify the parameters you require from the diagram below.
